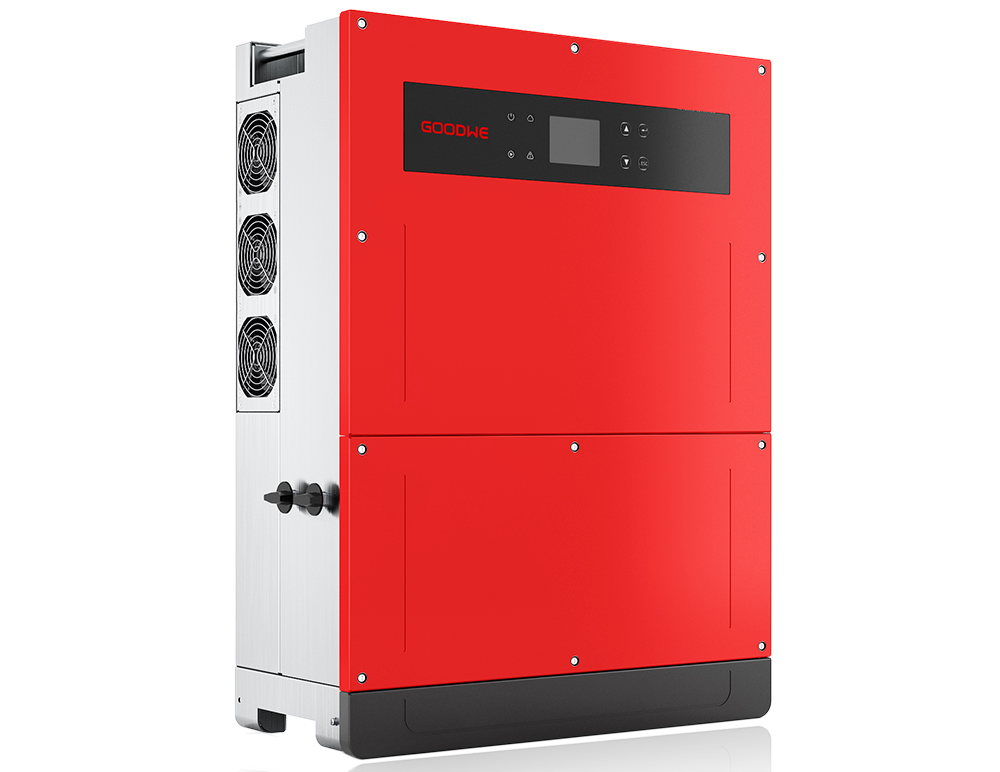

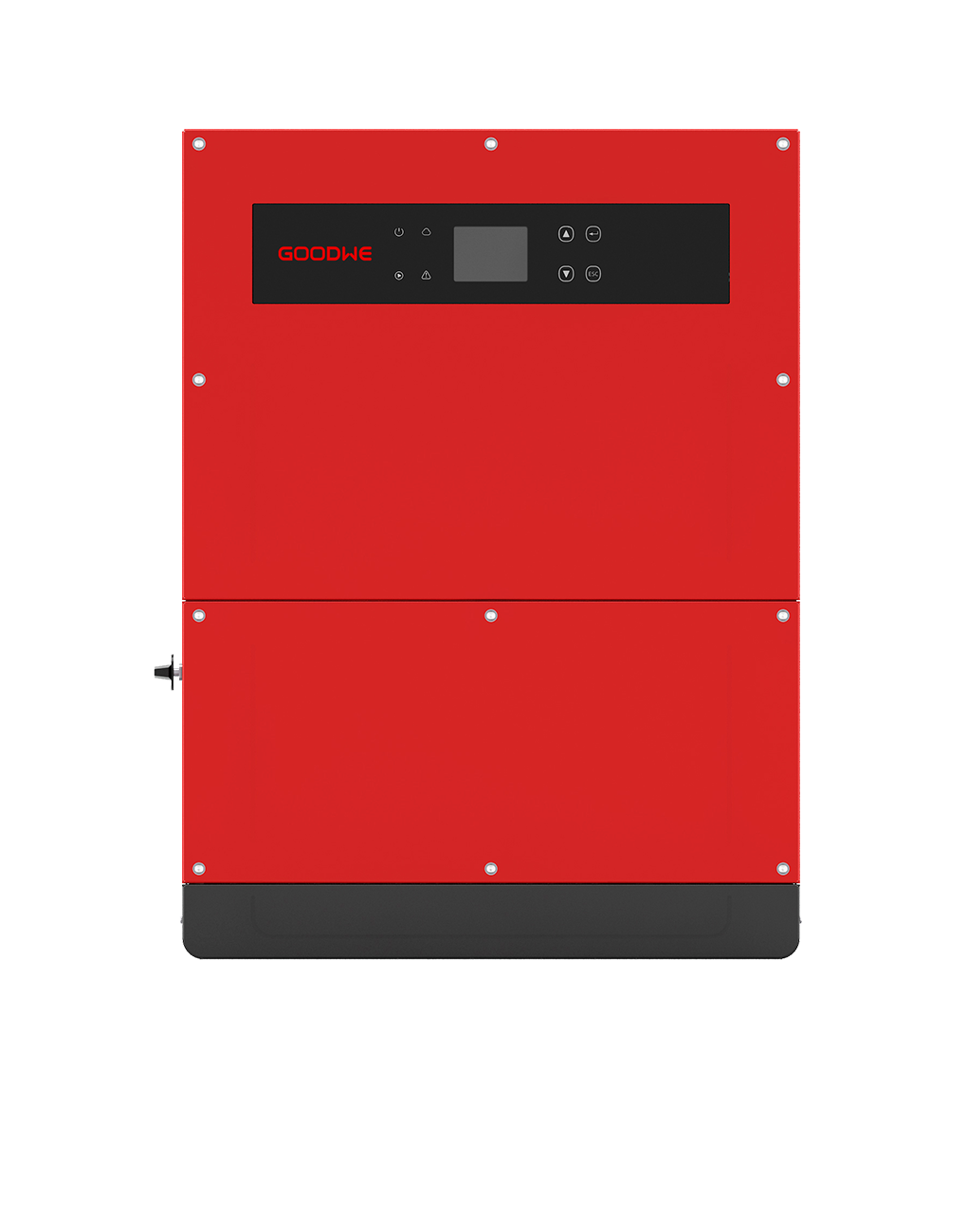

Developed as an efficient response to South American market needs for low-voltage inverters, GoodWe’s LVMT series inverter is suitable for medium and large scale commercial rooftops or ground-mounted solar PV systems where maximum versatility and profitability are important. With its compact design and power boost function, GoodWe’s LVMT series can provide extremely high efficiency of 98.8%, thus offering a faster return on investment.
String level monitoring
Up to 180% DC input oversizing
Up to 110% AC output overloading
Up to 98.8% max. efficiency
Full-load running at 50ºC
Power line communication
Low voltage
Latin
undefined
undefined
Four MPPTs Maximize Output
Improve your energy harvest with four MPP trackers to minimize output losses caused by partial shading and other mismatch effects.
High Generation
With 180% DC input oversizing capability, the LVMT allows users to significantly expand the solar array and drive increased power output even under low solar radiation.
180%
DC INPUT OVERSIZING
110%
AC OUTPUT OVERLOADING
ÜBERBLICK
Modell
GW30KLV-MT
Max. Eingangsspannung (V)
800
Max. Eingangsstrom pro MPPT (A)
33/33/22/22
Anzahl der MPPT/Anzahl der Stränge pro MPPT
4/3-3-2-2
Max. Effizienz
98.7%
Nenn-Ausgangsspannung (V)
150~300
Modell
GW35KLV-MT
Max. Eingangsspannung (V)
800
Max. Eingangsstrom pro MPPT (A)
33
Anzahl der MPPT/Anzahl der Stränge pro MPPT
4/3
Max. Effizienz
98.8%
Nenn-Ausgangsspannung (V)
150~300
Modell
GW50KLV-MT
Max. Eingangsspannung (V)
800
Max. Eingangsstrom pro MPPT (A)
44
Anzahl der MPPT/Anzahl der Stränge pro MPPT
4/4
Max. Effizienz
98.7%
Nenn-Ausgangsspannung (V)
150~300
